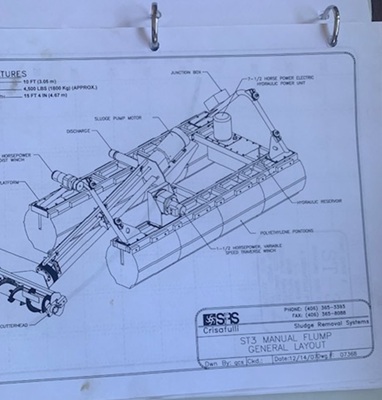

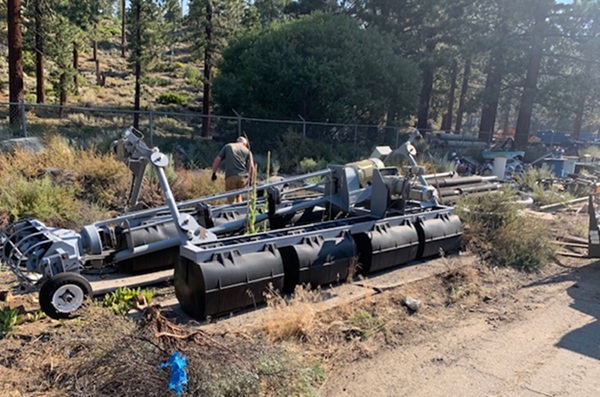

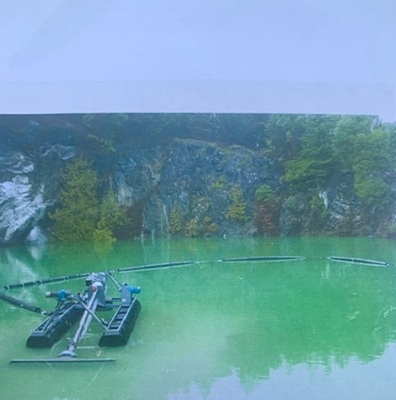

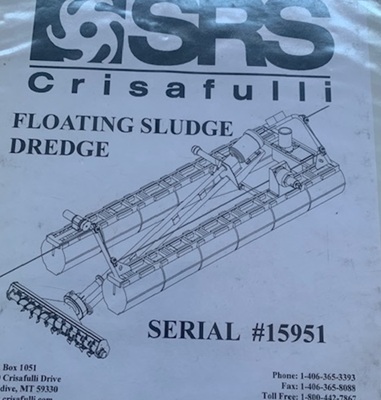

Remote controlled dredge with horizontal auger. Operates in a cable environment and can be partially or fully automated. The FLUMP (floating lagoon pumper) are simple to operate, and easy to transport. The dredge operator isn’t exposed to potentially hazardous dredged materials. Remote control is user friendly and works in rain. Pontoons are 4.27 m (14-ft). Total weight is 3900 lbs (1769 kg).
Location: State of Nevada, USA
| Principal Dimensions and Characteristics | ||||
| Flotation (Pontoon): | Foam Filled Polyethylene | |||
| Frame: | A-36 mild steel | |||
| Length: | 4.27 m | 14-ft | ||
| Width: | 2.44 m | 8-ft | ||
| Height: | 1.75 m | 5.75-ft | ||
| Total Weight: | 1769 kg | 3900 lbs | ||
| Dredge Performance | ||||
| Dredge Depth: | 3.04 m | 10-ft | ||

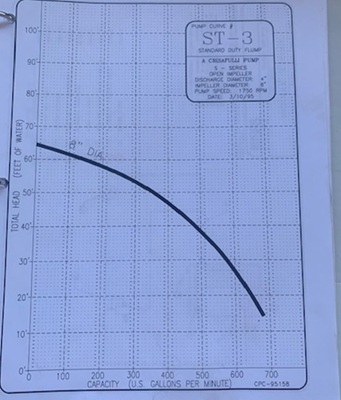

| Flow: | 1892 L/min @11.58 m | 500 GPM @ 38-ft (water) | ||
| Pressure | 19.5 m @ shutoff | 64-ft @ shutoff | ||
| Pump | ||||
| Size: | 76.2 mm S-Series | 3-inch S-Series | ||
| Type: | Centrifugal vertical direct drive | |||
| Motor: | 25 hp, TEFC, 1750 RPM, 230/460 VAC | |||
| Discharge Diameter male NPT: | 102 mm | 4-inch | ||
| Adapter: | 4-inch NPT – 4-inch male Ringlock | |||
| Max. Spherical Solid Size: | 38.1 mm | 1.5-inch | ||
| Pump Material of Construction | ||||
| Volute: | AR-400 abrasion resistant alloy | |||
| Impeller: | AR-400 abrasion resistant alloy | |||
| Impeller Shaft: | Stress proof alloy | |||
| Pump Frame: | A-36 mild carbon steel | |||
| Shaft Coupling: | Flexible 3-piece | |||
| Hoist Winch | ||||
| Gear Motor | ||||
| Type: | Fixed Speed | |||
| Drive Motor: | 3/4 hp (.56 Kw), TEFC, 230/460 VAC with brake and hand release (failsafe) | |||
| Output Speed: | 18 RPM | |||
| Torque: | 2630 lb. in max (297 Nm) | |||
| Line Pull: | First wrap 1830 lbf | |||
| Cutterhead | ||||
| Type: | Horizontal opposing auger | |||
| Width: | 1.37 m | 4.5-feet | ||
| Depth: | 381 mm | 15-inch | ||
| Drive Motor: | Hydraulic high torque | |||
| Support Bearing: | Water Lubricated | |||
| Torque: | 5577 lb in max. | |||
| Speed: | 51 RPM Nominal | |||
| Material of Construction | ||||
| Auger: | A-36 mild carbon steel | |||
| Shroud: | A-36 mild carbon steel | |||
| Tires: | Hardened plow steel | |||
| Additional | ||||
| Radio remote control to the control panel | ||||
| Increase traverse system width to 250′ wide | ||||
| Increase power cable length to 575′ | ||||

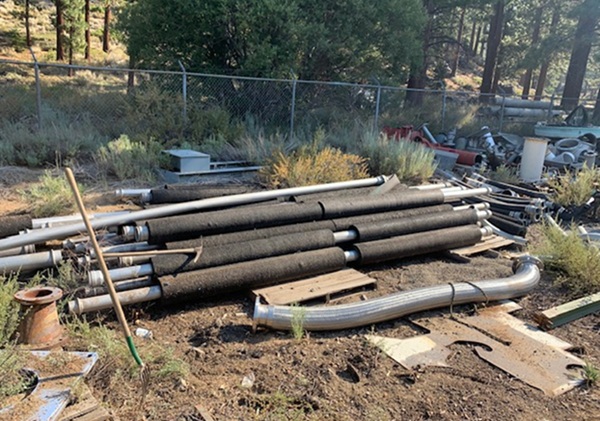

| Pipe, Float, 4″, Alum/Foam 15′, w/QC | ||||
| Tubing, 4″ x 5′ w/QC | ||||
| Pipe, Float, 6″, Alum/Foam 15′, w/QC | ||||
| Tubing, 6″ x 5′, w/QC | ||||
| 4″ Wafer flange style knife gate valve | ||||
