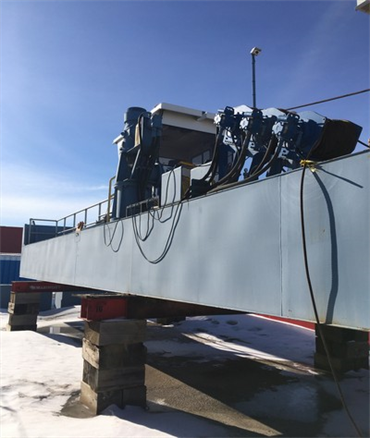

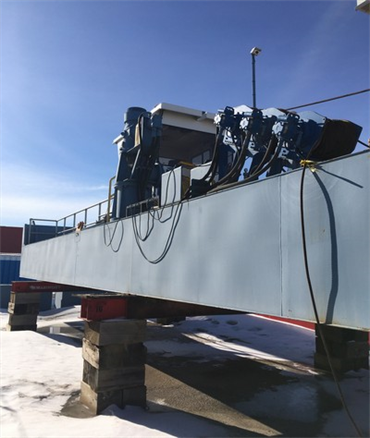

The 870 Series Jet Dragon® combines the reliability and durability of our industry proven Ellicott dredge while adding a ladder mounted dual hydra jet pump, to increase efficiency at deeper digging depths. Both the main pump engine and auxiliary engine are Caterpillar low emission ACERT engines. Max dredging depth is 60-ft. Swing width at max dredging depth is 130-ft. The main dredge pump has been rebuilt, but it has not been installed in the dredger. The dredge has approximately 8000 hours. The pump will be installed and all systems checked before the dredge is shipped.
Location: Canada
| Principal Dimensions and Characteristics | ||||
| Year Built | ||||
| Length Over All: | 32.5 m | 160.5-ft | ||
| Length, Hull: | 15.3 m | 65-ft | ||
| Width, Hull: | 6.7 m | 22-ft | ||
| Depth, Hull: | 1.22 m | 4-ft | ||
| Hull Draft (not including Spuds): | 0.96 m | 3-ft | ||
| Dry Weight: | 75,749 kg | 167,000 lbs | ||
| Fuel Capacity: | 10,221 liters | 2,700 gals | ||
| Dredge Capacities | ||||
| Dredging Depth, maximum: | 18.2 m | 60-ft | ||
| Swing Width, @ min Dredging Depth: | 29.4 m | 97-ft | ||
| Swing Width, @ max Dredging Depth | 39.4 m | 130-ft | ||
| Suction Diameter: | 354 mm | 14-in | ||
| Discharge Diameter: | 354 mm | 14-in | ||
| Main Engine | ||||
| Make / Model: | Caterpillar C-18 | |||
| Power: | 431 kW | 575 hp | ||
| Rating: | Tier 3 | |||
| Cooling: | Radiator | |||
| Auxiliary Engine | ||||
| Make / Model: | Caterpillar C-13 | |||
| Power: | 289 kW | 385 hp | ||
| Rating: | Tier 3 | |||
| Cooling: | Radiator | |||
| Cutter Drive | ||||
| Power at Cutter Shaft: | 75 kW | 100 hp | ||
| Cutter Speed: | 0-36 RPM | |||
| Cutter Diameter: | 1,092 mm | 43-in | ||
| Cutting Force: | 3,358 kg | 7,405 lbs | ||
