Barge Overview
180’ Sectional Barge System for sale. Applications include Large-scale dredging platforms, Crane barge spreads, Bridge construction & rehabilitation, Marine heavy civil construction, Floating staging platforms, and Industrial and mining operations.
Lead Time: 24 weeks
Pricing: $2,134,080

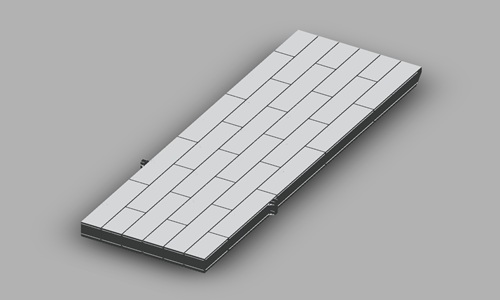

Barge Characteristics:
- Length: 180 ft.
- Width: 60 ft.
- Depth: 7 ft.
- (24) × 10′ x 40′ x 7′ barge sections
- (6) × 10′ x 20′ x 7′ barge sections
- Design: Heavy-duty pin-together modular barge system
- Layout: Staggered joints for maximum structural integrity across full spread
Built for High-Production Operations:
- Large-scale dredging projects
- Major marine construction
- Bridge & infrastructure work
- Crane barge operations
- Bulk material handling
- Mining and heavy civil marine application
Heavy-Duty Construction (Warfab XL Class)
- Hull: 1/4″ steel plate shell
- Internal Structure: 16″ on-center bracing
- Designed to handle: High-capacity crane loads, Multiple machines operating simultaneously, Continuous heavy-duty use, Double continuously welded seams
Modular Connection System
- Heavy-duty pin-together connections
- Steel angle connection system + pins
- Designed for: Fast on-site assembly, Long-term durability under load
- Fully scalable system — expand or reconfigure as needed
- Truckable modules for efficient transport
Spud System (Included)

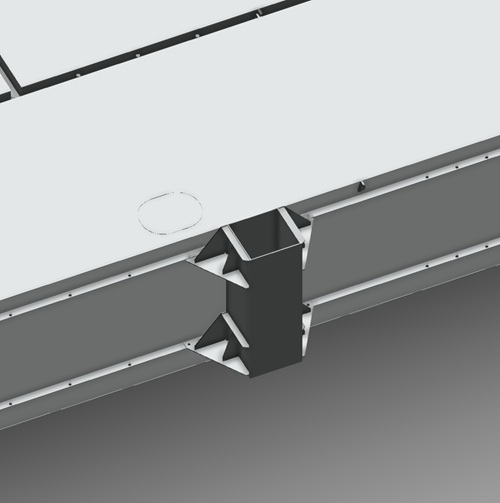

- (2) × 24” external spud pockets
- Available Options: Additional spud pockets, Multiple spud diameters and lengths available based on project, Hydraulic spud systems available upon request
Coating System
- Fully sandblasted steel
- (2) coats marine-grade epoxy coating
- Designed for long-term durability in harsh marine environments
Transport & Deployment
- Modular sections = efficient trucking and mobilization
- Assembled on-site into full production spread
- Ideal for remote and large-scale project deployments
Key Advantages
- Massive deck footprint = maximum production output
- Modular system = fully customizable and scalable
- Built for top-tier contractors running large jobs
- Eliminates need for costly one-piece barges
- Proven system for high-capacity marine operations
Our inventory of deck barges changes often. If you don’t see what you’re looking for please give us a call at +1 (225) 301-2873 or
