Pipe Details & Characteristics
3,400-foot (1,035m) 18″ (457mm) ID Dredge Piping System Package.
Components:

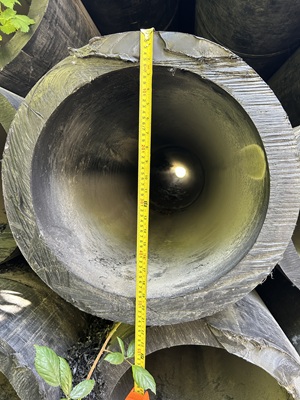

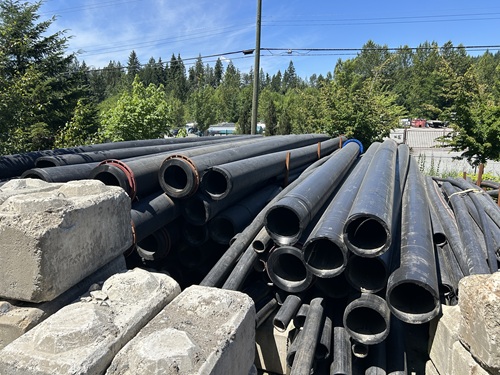

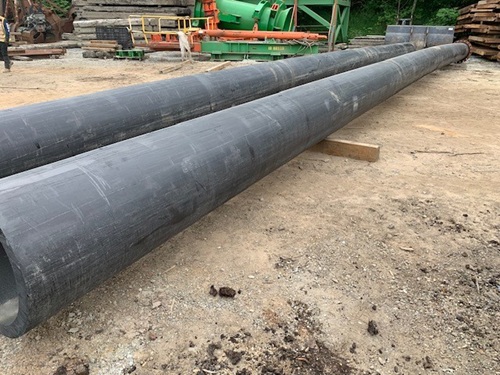

- 2,775-feet (846m) of 22″ SDR11 HDPE Pipe (17.76″ / 451mm) ID
- 470 feet (144m) of 22″ SDR13.5 HDPE Pipe (18.54″ / 471mm) ID

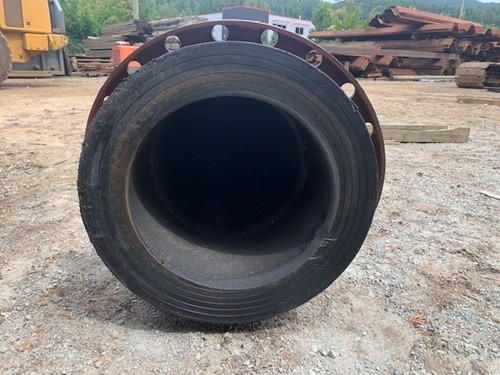

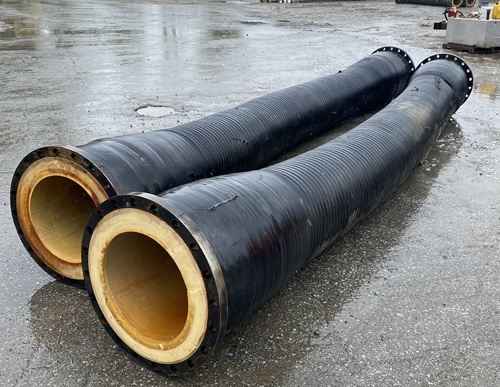

- 5 ea. – 18″ (457mm) ID HD Dredge Hose – 19’ (5.8m) long – 22″ Flanges – 150 PSI rating
- 11 ea. – 22″ Dia. Neptune Pipe Float Halves (5.5 floats)
- 1 ea. – 22″ to 18” reducer with flange adapters and DI Backing Rings
Piping System
- The piping system was only used for a couple of small projects and is in excellent condition with little wear.
- PE 4710 pipe
- The HDPE pipe was manufactured in Canada and originally purchased in 2016
- The dredge hoses were custom made-to-order from New Line Hose & Fittings in 2015
- Tan PG tube 1-1/2″, plies of fabric + helix wire, black EPDM 3/32″ corrugated cover, c/w CS 22″ rubber lined nipples & fix x floating flanges 150#. 96.45 LBS/FT PRESSURE: 150 PSI OD: 22.32″ BR = 144″
Floats

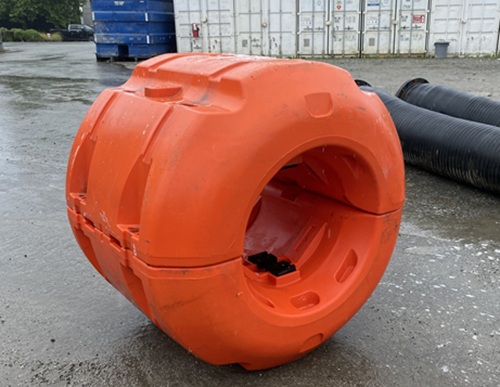

- Pipe floats are by Neptune Flotation LLC (Made in the USA) and originally purchased in January 2016.
Pricing
- C$256,800.00 CAD
Our dredge pipe inventory changes weekly. If you don’t see what you’re looking for, please give us a call at +1 (832) 361-4455 or email us.
