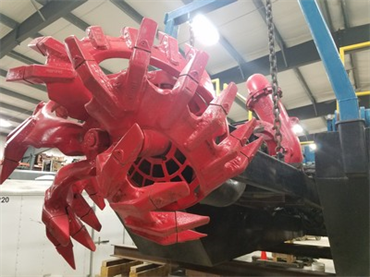

This DSC dredge was rebuilt in 2018 (built 1997) and has new controls switches and wiring new paint and a new seat. The CAT 3116 was overhauled as well, injection pump rebuilt alternator and starter inspected and tested. All functions were tested on land before going to storage. Minimum dredging depth is 3-ft and maximum depth is 17-ft 6-inch.
Location: State of Iowa, USA
| Principal Dimensions and Characteristics | ||||
| Year Built: | 1997 / rebuilt 2018 | |||
| Length Over All: | 13.05 m | 42-ft 10-inch | ||
| Operating Width: | 5.64 m | 18-ft 6-inch | ||
| Hull Depth: | 1.22 m | 4-ft | ||
| Dry Weight (est.): | 15876 kg | 35,000 lbs | ||
| Engine | ||||
| Make / Model: | CAT 3116 | |||
| Fuel Capacity: | 1893 ltr | 500 gallons | ||
| Pump | ||||
| Nominal Capacity (water): | 2000 gpm @ 185 TDH | |||
| Discharge Diameter: | 203.2 m | 8-inch | ||
| Dredging Depth min: | 0.91 m | 3-ft | ||
| Dredging Depth max: | 5.33 m | 17-ft 6-inch | ||
