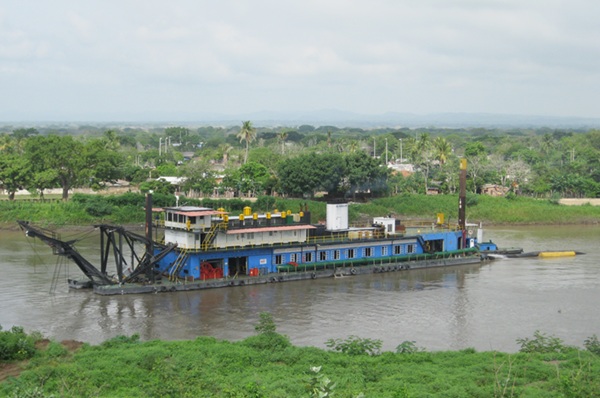

Ellicott Dragon Series 3000 dredge with 24″ x 24″ pipe. Length: 70.5m, Beam: 13.5m, Depth: 2.7m and maximum draft: 1.2m. Maximum Dredging Depth 13 m. It is a dredge powered by 2 CATERPILLAR 379 engines. Accommodation for crew, cabins, bathrooms, kitchen and dining room.
Location: Columbia
Quick Overview
| Dimensions & Info | ||||
| Build Year: | 1945 Baltimore USA | |||
| Model: | Ellicott 3000 | |||
| Type: | Self-propelled | |||
| Length: | 70.5 meters | |||
| Beam: | 13.5 meters | |||
| Depth: | 2.7 meters | |||
| Empty Draft: | 1.2 meters | |||
| Empty Weight: | 357 ton | |||
| Number of Pontoons: | 3 | |||
| Fuel Capacity: | 20.000 Gallons | |||
| Dredging | ||||
| Dredging depth, maximum: | 13 m | |||
| Maximum turning width dredging depth: | 60 m | |||
| Suction pipe / Discharge pipe: | 24″ x 24″ | |||
| Engines | ||||
| Main Engine: | Caterpillar X 2 D 399 | |||
| Power: | (969 kW) | |||
| Engine Generator: | Caterpillar D3406 | |||
| Power: | (328 kW) | |||
| Propulsion Engine: | Caterpillar X 2 D379 | |||
| Power: | 466 KW | |||
| Total Installed Power | ||||
| Not including standard generator set: | 2250 HP | |||
| Cutter Drive | ||||
| Cutting Force: | 12300 kg | |||
| Cutting Speed: | 0 a 26 RPM | |||
| Cutter Diameter: | 2153 mm | |||
