Dredge Info
2016 VMI MD-815 8″ Horizontal Auger Dredge for sale. Only 3914 hours on it. Purchased new in 2016. Very little wear on the pump. Material pumped was mainly pond muck and organics. Positioning system was installed and maintained by Measutronics, Inc.
** Can be purchased with IMS 8″ x 10″ booster pump (250604)
Dredge Overview & Features:
- Location: Indiana
- Year Built: 2016
- Manufacturer: VMI
- Excellent working condition
- Includes electronic positioning system with Trimble GPS
- Jewell Instruments Inclinometer
- Getec military grade laptop
Optional for 2,800 ft. of pipe for an additional cost.
- 1,200′ floating
- 1,600′ shore pipe
| Dredge Characteristics | ||||
| Length Over All: | 38′ – 6″ | |||
| Beam: | 9′ – 11″ | |||
| Height (without A/C): | 8′ – 10″ | |||
| Draft: | 25″ | |||
| Weight: | 26,500 lbs. | |||
| Fuel Capacity: | 325 U.S. Gallons | |||
| Main Engine | ||||
| Make/Model: | Cummins QSL 9 | |||
| Power @ 2,100 RPM: | 325 hp | |||
| Meter Hours: | 3,914 hours | |||
| Hydraulic System | ||||
| Pumps: | 3 – variable displacement, axial piston / 1 – fixed displacement | |||
| Motors: | Fixed displacement | |||
| Capacity: | 170 GPM @ 2200 RPM | |||
| Reservoirs: | 100 U.S. Gallons | |||
| Drive: | Hydraulic pump drive, direct from engine | |||
| Filters: | Protected hydrostatic loop, high pressure suction & return | |||
| Cutter Assembly | ||||
| Type: | Horizontal with full-width flow-through suction (paddle & cutting teeth available) | |||
| Size: | 9′ 11″ wide x 21″ diameter | |||
| Speed: | Variable 0-80 RPM (forward & reverse) | |||
| Torque: | 30,348 in-lbs. (3,429 N-m) | |||
| Operating Depth: | Variable to 15’ | |||

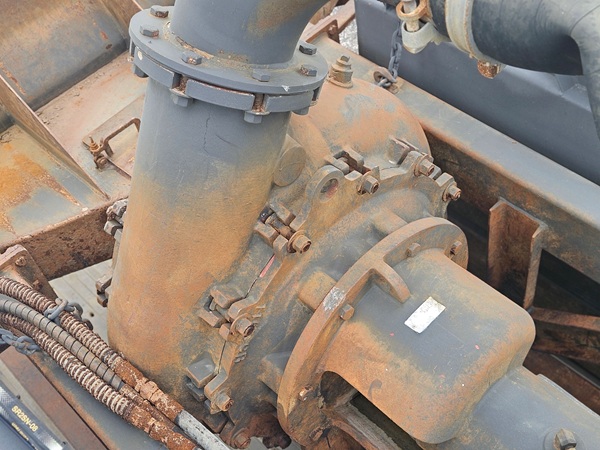

| Dredge Pump | ||||
| Type: | Hi-chrome cast iron, centrifugal, recessed impeller | |||
| Impeller: | 25″ | |||
| Suction: | 8″ | |||
| Discharge: | 8″ | |||
| Sphere Passage: | 7.75″ | |||
| Pump Performance: | 3,000 gpm @ 140 feet (21.3 m) TDH (water) @1030 RPM | |||
| Pontoons | ||||
| Dimensions: | Two – 34″ x 40″ x 34′ – 6″ | |||
| Description: | 10-gauge steel. Integral bulkheads & stiffeners, cora-foam filled | |||
| Propulsion | ||||
| Type: | Treble sheave hydraulic winch | |||
| Traverse Speed: | Variable 0-50 ft/min | |||
| Cutting Speed: | 0-15 ft/min | |||
| Electrical System | ||||
| Voltage: | Heavy Duty, 12 volt | |||
| Alternator Output: | 100 amp | |||
