Dredge Overview

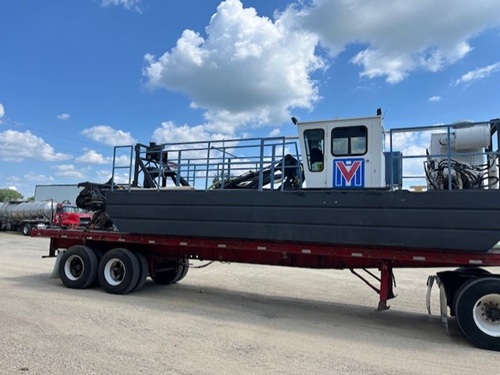

VMI MDE-615 8-Inch Cutter head dredge built in 2007 and in excellent condition. Has ICS controller.
This dredge is a cable-driven cutter suction dredge, that’s easily transportable. Dredging applications include marinas, lakes, ponds, and lagoons. Features include a full-width cutterhead and recessed impeller pump for efficient sediment removal.
Additional pictures available here: 251105-DH Pictures
Dredger Characteristics
- Year Built: 2007
- Model: VMI MDE-615
- Weight: 23,000 lbs. (10,431kg)
- Length: 37 ft 6 in (11.43m)
- Height: 8 ft 6 in (2.59m
- Transport Width: 9 ft (2.74m)
- Working Width: 9 ft 11 in (3.02m
- Draft: 22 in (559mm)
- Fuel Capacity: 244 U.S. gallons (932 L)
- Maximum Dredging Depth: 15 ft (4.57m)
- Pontoons: Full length formed steel with integral bulkheads and stiffeners for added rigidity. Foam filled
Cutter Assembly
- Type: Horizontal with full-width, flow-through suction (Paddle and cutting teeth available)
- Speed: Variable 0-80 RPM (forward and reverse)
- Torque: 30,828 in-lbs. (3,483 N-m)
Propulsion
- Type: Treble sheave hydraulic winch
- Traverse Speed: Variable 0-50 ft/min (0-15.24m/min)
- Cutting Speed: 0-15 ft/min (0-4.57m/min)
Hydraulic System
- Description: Three independent variable displacement, hydrostatic circuits/One – fixed displacement, valve controlled circuit
- Reservoirs: Total 100 U.S. gallons (378.5 L)
- Filtration: Protected high and low pressure hydrostatic loops with charge and working circuits
Our inventory of Cutter suction dredges changes often. If you don’t see what you’re looking for please give us a call at +1 (225) 301-2873 or email us to discuss what you’re looking for.
