Dredge Overview
Dino 6 dredge for sale in the United States with only 85.6 hours. Built in 2023. The Dino 6 is a small, portable, horizontal auger / cutter suction dredge that’s used to remove sludge and sediment from marinas, lakes, municipal waste, retention ponds, golf courses, and sediment lagoons.
Package Includes:

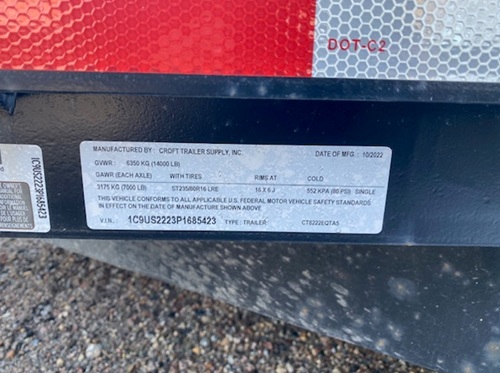

- 2023 Croft 14k trailer
- All original parts and pulleys included
- Ratchet straps
- 2x dock lines
- 1x set Cutter head roller bumpers
- 14x Molly graph grease tubes
Cable / Anchor Kit (Included)
- 5x anchor plates
- 22x anchor spikes
- 4x cable hand winches
- 6x vise grips
- 1x pulley

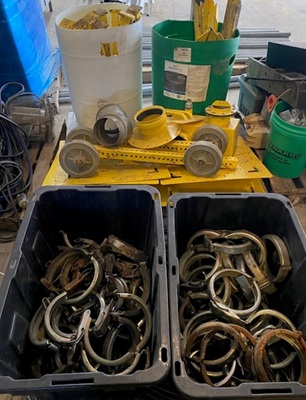

Pipe Kit (Included)
- 1x 45° pipe connector
- 4x 90° pipe connectors
- 2x T pipe connectors
- 3x manifolds (shut off valve)
- 3x tube to bag end pieces
- 28x Locking pipe clamps
- 31x Pipe clamps
- 6 x 20’ Floating pipes
- 11x 10’ flex pipes
- 2x 10’ land pipes
- 1x 12’ land pipes
- 18x 20’ land pipes
- 1x Thick flex pipe

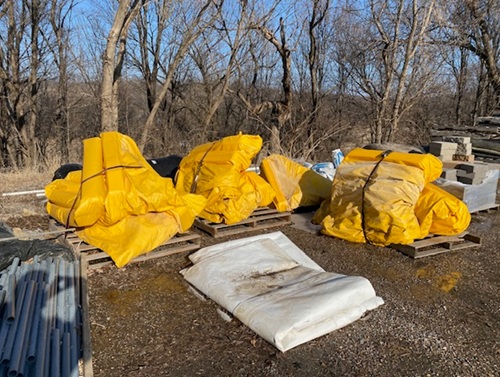

Bags and curtains (Included)
- 2x 60×100’ Sediment containment bags
- 3x 50×5’ Sediment curtains
- 4x 50×3’ Sediment curtains
Polymer kit (Included)
- 1x injection port (with pressure trigger)
- 2x pulsatron pulsafeeder
- 1x injector switch
- 1x check valve
- 1x incite IG portable water meter
Hardware kit (Included)
- C clamps
- Threaded connectors
- Thimbles
Characteristics & Dimensions
- Year Built: 2023 (Geoform International, Inc.)
- Only 85.6 engine hours
- Dredge is in “Like New Condition”
- Type: Horizontal Auger / Cutter Suction Dredge
- Length 21 ft. (6.40 m)
- Width 71 in. (533.4 mm)
- Height 64 in. (1625.6 mm)
- Weight: (without fuel) 3,800 lbs.
Working Capacity
- Working Depth: 13 ft. (3.96 m)
- Cut Width: 66 in. (1676.4 mm)
Slurry Pump
- Material AR Steel, 400-500 Brinell
- Discharge Diameter 6 in. (152.4 mm)
- Performance 1,500 GPM Max – 1,100 GPM @ 50 ft. TDH
- Supplied with open faced trash impeller enclosed impeller available
Engine
- Engine Type: B3.3 Cummins 4 cylinder diesel
- Horsepower: 65 hp @ 2500 rpm
- Fuel capacity: 30 gallons

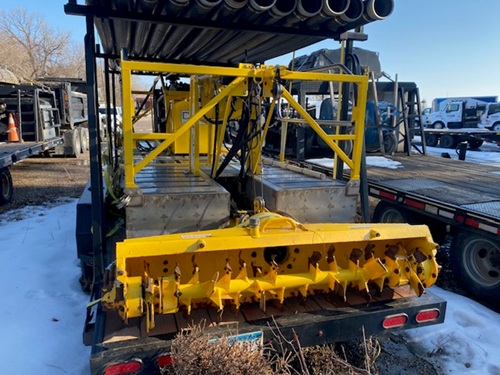

Cutterhead
- Width 66 in. (1676.4 mm)
- Diameter: 14 in. (355.6 mm)
- Drive: Variable speed duel hydraulic motor
- Replaceable, hardened steel trencher teeth and mixing paddles
Our inventory of auger dredgers changes often. If you don’t see what you’re looking for please give us a call at +1 (225) 301-2873 or email us to discuss what you’re looking for.
