Dredge Overview

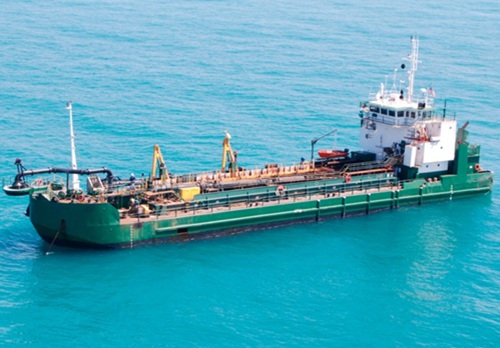

For sale, Trailing Suction Hopper Dredger (TSHD) with a hopper capacity of 1,300 cubic yards (994 cubic meters).
There was flooding and the generators that run the crew quarters and wheel house are not operational.
Bottom Dump and Bow Discharge Capability with Max effective dredging depth approximately 1.651 m.
General
- Year Built: 1980 (United States)
- Type: Trailing Suction Hopper Dredger
- Flag: United States of America
- Class Society and Notation: ABS
- Next SS: January 2027
- Location: United States
Dimensions & Characteristics
- Length Overall: 60 m (197.8 ft)
- Width: 12.43 m (41 ft.)
- Depth: 5 m (16.5 ft.)
- Draft: 4.45 m
- Gross Tonnage: 760 tons
Machinery & Propulsion
- Main Engines: (driving) 2 x Niigata ZP-D8 Z Drives (rebuilt 2021 with 1154 & 1205 Hours.)
Service Generators
- 2 x Caterpillar 3306 (Rebuilt in 2021. with 1588 and 1626 hours)
Dredge Generator
- Caterpillar C27 with 14,500 hours
Dredge
- 700 hp Dredge Motor
- Suction Head: 1.62 m
- Suction Pipe: 0.56 m
- Discharge Pipe: 0.51m
Air Compressors
- 2 x Quincy 350L
Accommodations
- Vessel has 15 beds, 9 on the first floor, 4 on the second floor and 2 on the third floor
Dredging
- Vert. Dist. Bottom: Top of Mast 22.67 m
- Light Draft: Fwd. 1.61 m
- Light Draft: Aft.2.65 m
- Light Draft: Avg. 2.13 m
- Loaded Draft: Avg. 4.45 m
- Lightship Displacement: 919.13 LT
- Summer Free Displacement: 2470 LT
- Summer Free DWT: 1506 LT
- Number of Dragarms: 1
- Max Digging Depth @ 45 DEG.: 19.81 m
- Available. Pump hp: 1 @ 700
- Pump RPM: Dredging 290
- Pump RPM: Pumping Out 360
Capacities
- Fuel tanks capacity: 95 m3
- Fresh Water tanks capacity: 28 m3
