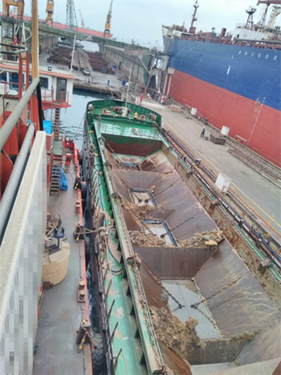

Barge Information
Built in 1990 in Russia, the barge has a steel hull. It has a Class Society and Notation of Phoenix 3nm offshore. Hooper capacity is 550m3 (719 yd3). It is powered by 2 overhauled VOLVO PENTA TD 162 with propulsion power of 2 x 220 hp. Max speed is 9 knots and cruising speed is 6.5 knots.
Main engines changed with overhauled VOLVO PENTA TD 162.
Location: Black Sea
| General | |||||
| Built: | 1990, Russia | ||||
| Hull Material: | Steel | ||||
| Flag: | Turkey | ||||
| Class Society and Notation | Phoenix 3nm offshore | ||||
| Dimensions and Characteristics | |||||
| Length Over All: | 65.60 m – 215.22 ft | ||||
| Length between perp.: | 63.00 m – 206.7-ft | ||||
| Breadth: | 10.14 m – 33.27-ft | ||||
| Depth: | 3.10 m – 10.17 ft | ||||
| Draft: | 3.10 m – 10.17 ft | ||||
| Displacement (at scantling draught): | 1192 tonnes – 1314 tons | ||||
| GT: | 747 tonnes – 832.42 tons | ||||
| DWT: | 752 tonnes – 829 tons | ||||
| Hopper Capacity: | 550 m3 – 719 yd3 | ||||
| Engine & Propulsion | |||||
| Make/Model (2) | 2 x Volvo Penta TD 162 | ||||
| Propulsion Power: | 2 x 220 HP | ||||
| Main Propulsion System: | Twin Screw | ||||
| Auxiliary engine(s) | 1 X 75 KW,1 X 110 KW | ||||
| Speed Max. | 9 knots | ||||
| Speed Cruising: | 6.5 knots | ||||
Additional Info
- Length on LWL 63.56 m
- CB (At scantling draught) 0.87
- Frame Spacing (Transvers) 540 mm
- Frame Spacing (Langitudinal) 530 mm
- Displacement (At scantling draught) 1192 ton
Consumption
- 110 LT / HOUR – sailing
- 20 LT / HOUR – stand-by
- Last Dry Dock Nov 2023 – Next Dry dock Nov 2026
