Self-propelled Floating Crane

  • 250718-BL
  • Location: Estonia
Thumbnail
Thumbnail
Thumbnail

All details on these pages are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.

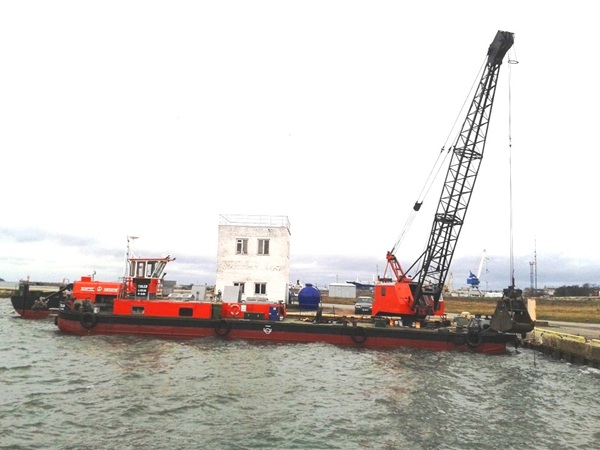

Self-propelled Floating Crane SWL 20 mts. Built 1937 with many upgrades, the last in 2023, renewed equipment and tanks, etc. Vessel is in good working condition.

Location: Estonia

To request additional documentation and specs for this vessel please contact us

Vessel Overview

  • Flag: Estonia; Port of registry: Tallinn, Official No: 1T13D03, Call sign: ES3003
  • Class: Estonian Maritime Administration
  • Trading region: Domestic trade up to 20 miles from place of refuge
  • Built: 1937, Mainz-Kastel, Germany, upgraded totally in 2013 and after that, all equipment renewed, new fuel and water tanks, very good condition of hull

Vessel Characteristics

  • GT / NT: 114 / 34
  • Seaworthiness certificate valid: 06.11.2028
  • LOA / BOA / Depth : 29.29 / 8,08 / 1,75 m
  • Draft: 1.31 m
  • Main engine: Deutz, F 8 L 413, KND Diesel, 1 x 111 kW
  • Propulsion: Schotel-Navigator, Ruderpropeller SRP 100 /103
  • Auxiliary engine: Herkules, NSN2815-00-501-7001
  • Generator: 380v, 50hz, 30 kW
  • Speed: 5.5 knots
  • Bunker capacity: 3 x 3 m3
  • Fuel consumption: 4 l/h (in port) / 25 l/h (at sea)
  • Fuel autonomy: 8 days
  • Bow Anchors: 1 x 390 kg, 2 x 27 m (16 mm)
  • Aft Anchors: 1 x 390 kg, 2 x 27 m (16 mm)
  • Winches: 4 x 4 kW, each winch with steel rope, ø19 mm
  • Crane Manufacturer: Weserhutte, Model /: W120, Ser. No 120109
  • The next test: 05.2027
  • Motor: Deutz-motor F 6L413
  • Lift capacity: 20 Mt (SWL)
  • Fuel consumption: 15 l/h
  • Length of the boom: 17,5 m
  • Max working angle of the boom: 75º

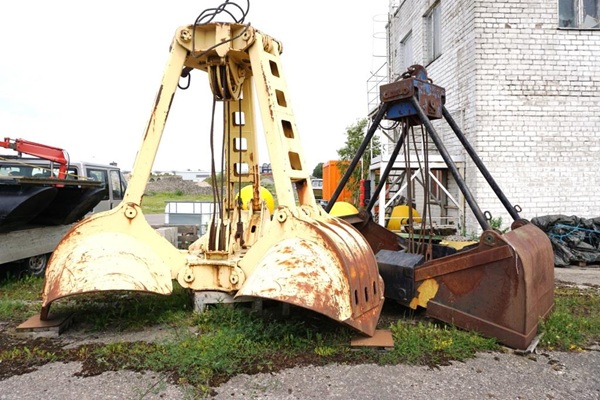

  • Capacity of the grab: 1,5 m3
  • Outreach outside: min with 2,1 m – 17,5 Mt
  • Outreach outside: max with /13,5 m – 3,3 Mt
  • Minimum outreach: 5,5 m
  • Max height from water level to hook (free board – 1,0 m) : 16 m
  • Max height from water level to grab (free board – 1,0 m) : 14 m
  • Max draft of hook for dredging works 15 m
  • Maximum draft of grab for dredging works: 18 m
  • Hook’s lifting speed: 15 m/min
  • Grab’s lifting speed: 32 m/min
  • Boom outreach change: 15 m/min
  • Crane turn around: 1 turn – 20 sec

Place and time of delivery: prompt, Tallinn. The owners are ready to render assistance for the buyers in its implementation and delivery. Price idea: very reasonable, can guide.
